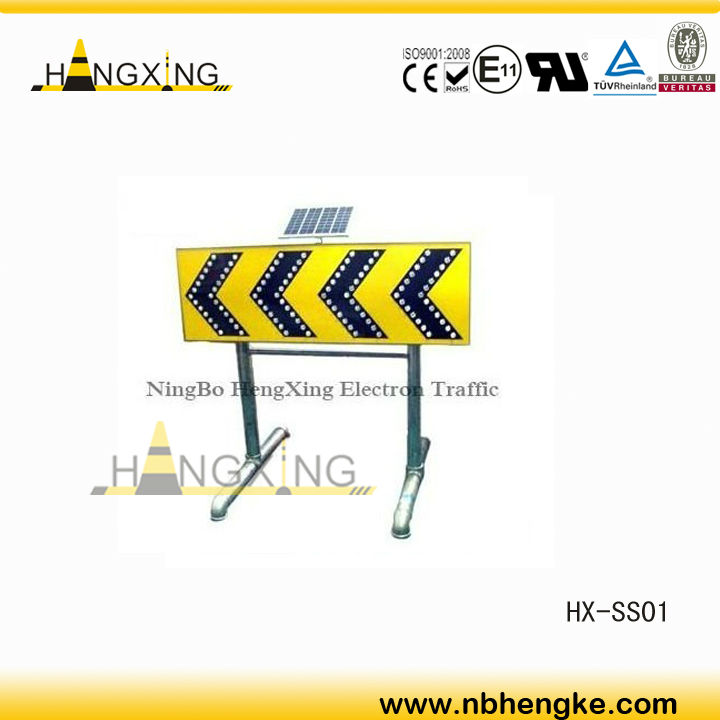

HX-SS01 Solar Powered LED Traffic Sign
- Place of Origin:CN;ZHE
- Brand Name:HENGXING
- Model Number:HX-SS01Solar Powered LED Traffic Sign
- Color:blue white
- Weight:About 52kgs
- LED board size:1500*500mm

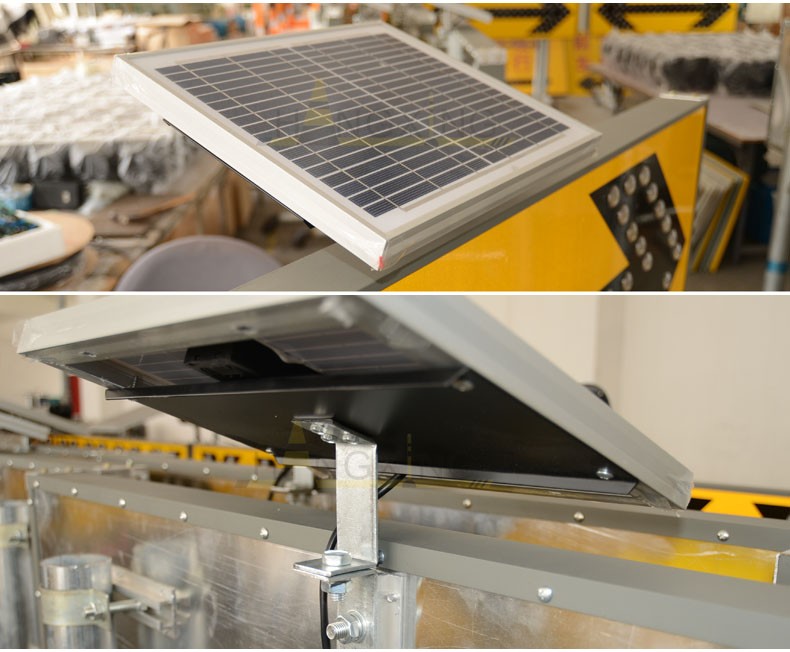

- Solar panel power:5-30W
- Visual distance:Over 1000m

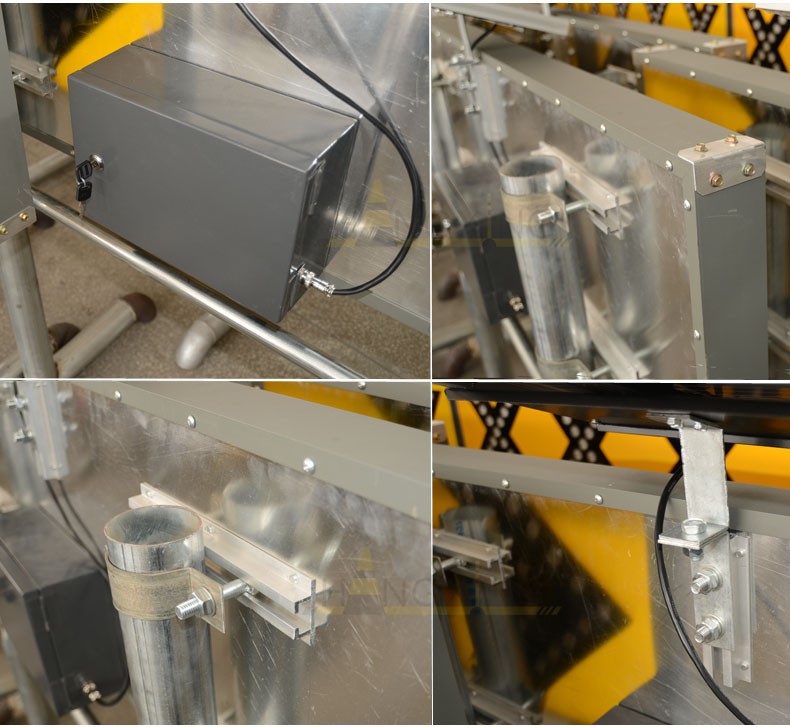

- Battery:1pc 12V 10-17AH rechargeable lead-acid battery
- Control:Specified controller for solar energy traffic lights
- Working mode:Flashing Freuqently
- Sign Meaning:Four Left Arrow
- Size:150x50cm
The LED Traffic sign
TheLED Traffic signwith Solar Panel is a complete new way for us to use it on the road.We can see it
on the road and it will warn you to pay attention.
TheLED Traffic Sighis a complete good sign. With this solar energy, you get power from solar.Itcan
show all kinds of signal with different colors quipped with high-quality LED.
The LED Traffic Sighhas the ability to display red or yellow or white or amber color for warning signal.
This LED Traffic Sighis one of a kind and gives you more for less.
Description | The LED Traffic Sigh | ||
Material | Plastic,aluminum,and LEDs | ||
LED board size | 1500*500mm | ||
Stand height | About 1.2m | ||
Weight | About 52kgs | ||
Color | Bright yellow reflective board with red led lights | ||
Power type | Solar panel power, Storage battery | ||
Arrow LED sign | led traffic signal solar powered | ||
LED color | Yellow, red, white, etc. | ||
Working mode | Flashing frequently | ||
Visual distance | Over 1000m | ||
Features | Model No. | HX-SS01 | |
Solar panel power | 5W-30W | ||
Battery | 12V,10Ah-17Ah | ||

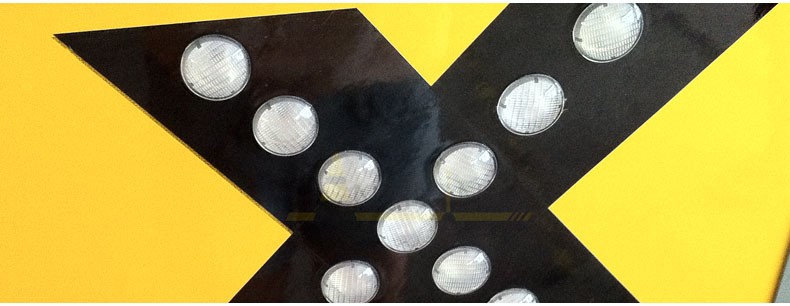

Light source | Ultra Bright led (various colors available) | ||
Visibility | >1000m | ||
Control | Specified controller for solar energy traffic lights | ||
Runtime | Under rainy weather over 240 hours | ||
Insight light control switch | Starts in dark automatically | ||
Specification | Solar Traffic Sign / LED Traffic Signal Board/LED Traffic Sign | ||

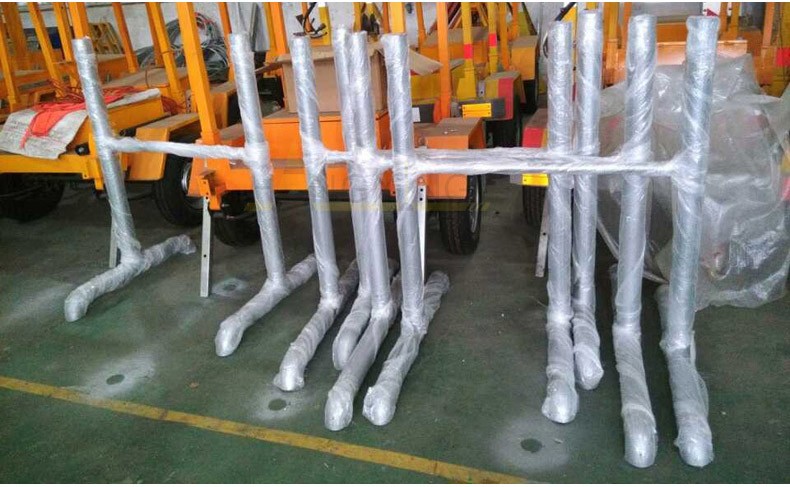

Packing details | 1pc LED board is packed in a carton and 1pc stand is packed in bubble bags. | ||
Board carton size | 152*52*21cm | ||
Board carton G.W./N.W. | 30kgs | ||
Stand volume and weight | About 0.08CBM and 22kgs | ||
Remark | Inside light control switch, able to start in dark automatically. | ||
Youtube channel | Hengxing Traffic | ||

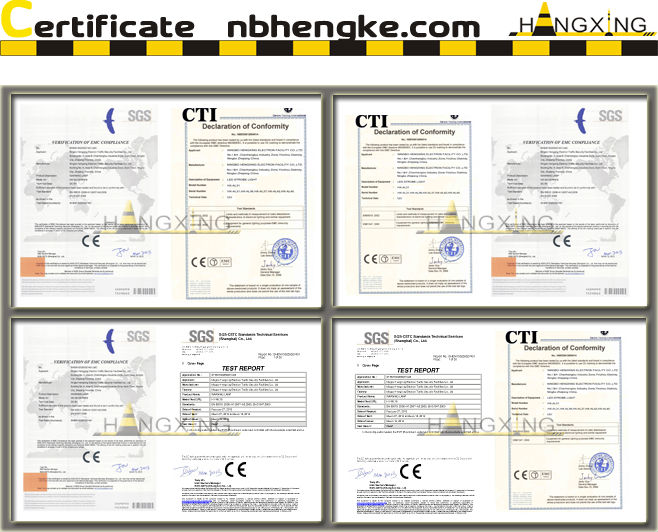

Certificate | CE | ||

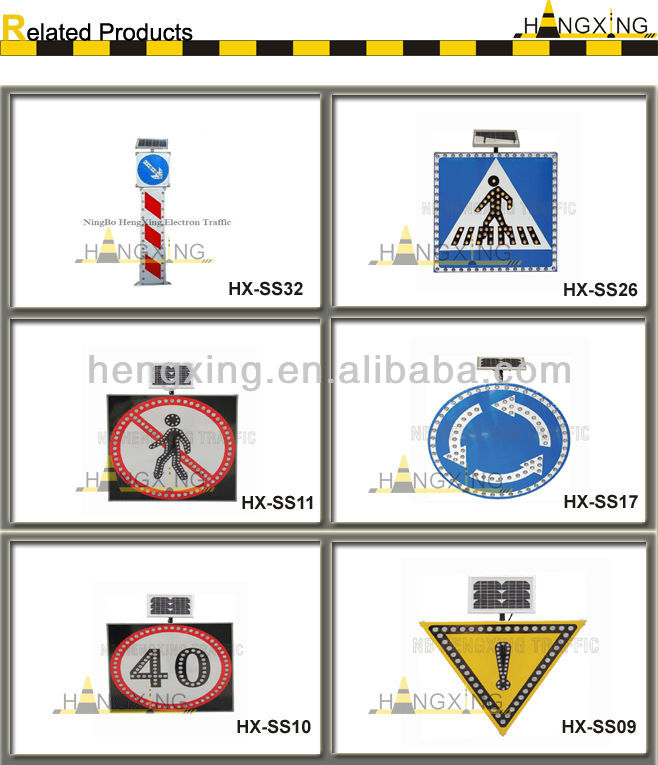

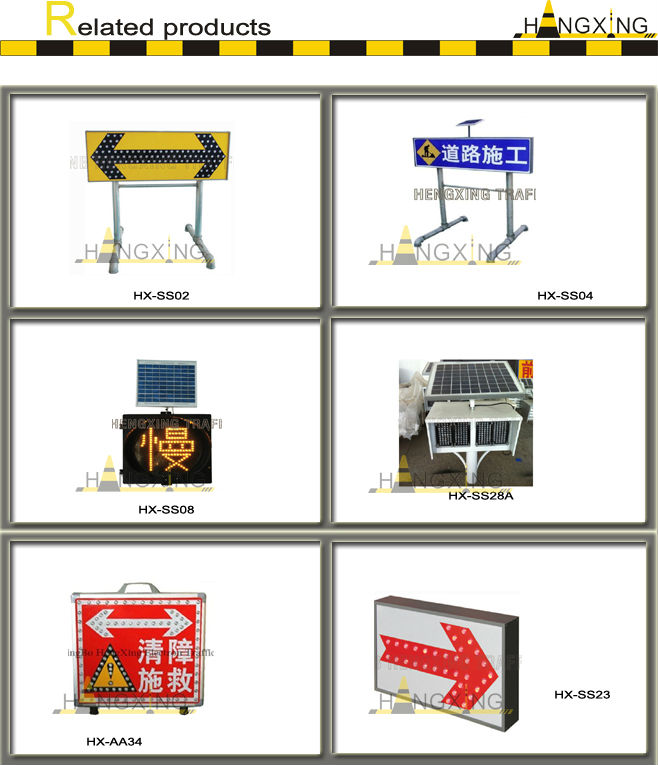

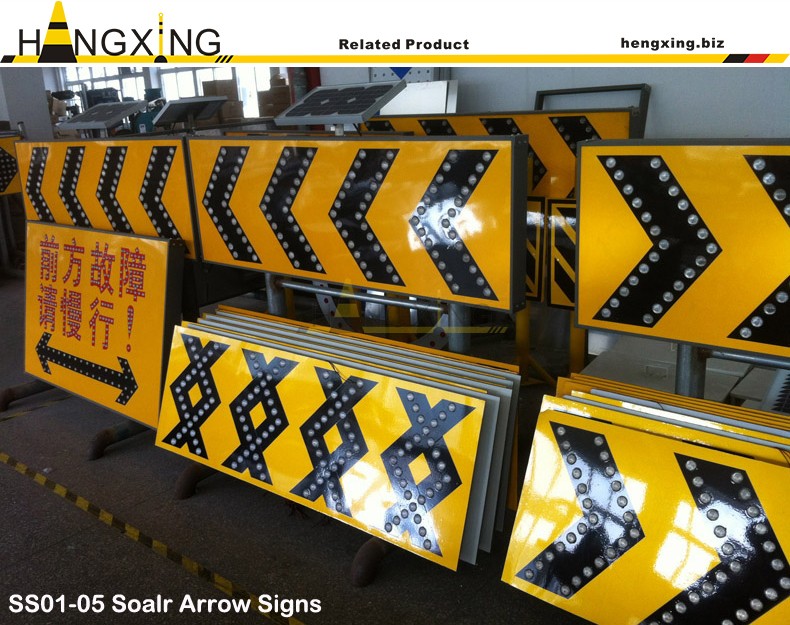

Item NO. | Signal Meaning | LED Panel Size(cm) | |
HX-SS01 | Four Left Arrow | 150*50 | |
HX-SS02 | Bidirectional Arrow | 150*50 | |
HX-SS03 | Bidirectional Arrow | 150*50 | |
HX-SS04 | Under Construction | 150*50 | |
HX-SS05 | Under Construction | 150*50 | |
HX-SS06A | Solar Warning Sign with one lamp | 150*50 | |
HX-SS06B | Solar Warning Sign with two lamps | 150*50 | |
HX-SS07 | Yellow Caution Light | 30*30*8.5 | |
HX-SS08 | Slow Down | 40*40*8.5 | |
HX-SS09 | Danger | 90*90*5 | |
HX-SS10 | Speed Limit | Dia. 60/80/90 | |
HX-SS11 | Pedestrian Passing | Dia. 60/80/90 | |
HX-SS12 | Left Turn | Dia. 60/80/90 | |
HX-SS13 | Give Way | 90*90*5 | |
HX-SS14 | Slow Down | 90*90*5 | |
HX-SS15 | Circular Route | 90*90*5 | |
HX-SS16 | Circular Route | Length:60/80/90 | |
HX-SS17 | Circular Route | Length:60/80/90 | |
HX-SS18 | Circular Route | Length:60/80/90 | |
HX-SS19 | Speed Limit | Dia. 60/80/90 | |
HX-SS20 | Parking | 80*80 | |
HX-SS21 | Solar Flashing Alerting Light | 80*80*5 | |
HX-SS22 | Right Arrow | 69*37*3 | |
HX-SS23 | Right Arrow | 80*40*5 | |
HX-SS24 | Right Arrow | 80*40*5 | |
HX-SS25 | Zebra Crossing | Length:60/80/90 | |
HX-SS26 | Zebra Crossing | Length:60/80/90 | |
HX-SS27 | Solar Flashing Alerting Light | 80*40*5 | |
HX-SS28A | Solar Traffic Light | 60*51*33 | |
HX-SS28B | Solar Traffic Light | 72*33.5*16 | |
HX-SS29 | Arrow Signal Lamp | 65*21*5 | |
HX-SS30 | Circle-Flashing Lamp | Dia. 56 | |
HX-SS31 | Speed | Dia. 60/80/90 | |
HX-SS32 | Circular Route | Top Sign:40*40 Indication Board: 120*30 | |
HX-SS33 | Solar Traffic Light | 120*60 | |
HX-SS34 | Solar Traffic Light | 60*50*5 | |
HX-SS35 | Solar Traffic Light | 80*80 | |
HX-SS36 | Direction Indicator | 26*48 | |
HX-SS37 | Direction Indicator | 46*85 | |
